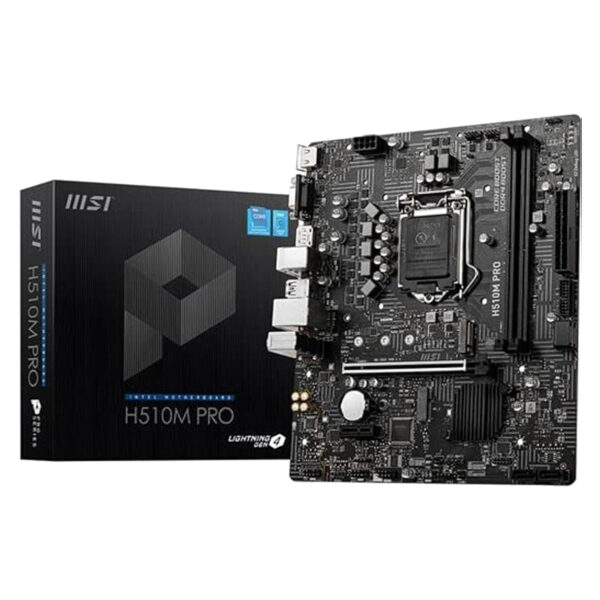

MSI H510M PRO Intel Motherboard
| Supported CPU | Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel H510 |
| Generation |
Intel 10th Gen and 11th Gen |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment |
| Form Factor | mATX Form Factor |
| Audio | 1x Front panel audio connector |
| PCI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From PCH) 1x PCIe x16 slot (From CPU) – Support up to PCIe 4.0 for 11th Gen Intel CPU – Support up to PCIe 3.0 for 10th Gen Intel CPU 1x PCIe 3.0 x1 slot (From PCH) |
| Memory Type | DDR4 |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | Max. 64GB |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| HDMI | 1 x HDMI Port |
| USB (s) | – 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) – 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) – M2_1 slot (From H510 Chipset) – Supports up to PCIe 3.0 x4 – Supports SATA 6Gb/s1 – Supports 2242/ 2260/ 2280 storage devices |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| Manufacturing Warranty | 3 years warranty |
What is the H510M Intel 10th Gen and 11th Gen Micro-ATX Motherboard Price in Bangladesh ?
The MSI H510M Intel 10th Gen and 11th Gen Micro-ATX Motherboard Price in BD is 0 ৳ in Today’s 21st December 2024 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard Review in BD
| Product Price |
0 |
| Stock Status | In Stock |
| Specification | Model: H510M Intel 10th Gen and 11th Gen Micro-ATX Motherboard
Supported CPU: 10th Gen, 11th Gen Intel Core Processors Supported Memory: 2 x DIMM, Max. 64GB, DDR4 Graphics: 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| Total Reviews | Based On 0 Reviews. |
| Availability | In Stock |
|---|---|
| Processor Type | |
| Brand | |
| CPU Socket | LGA 1700 |
| From Factor | Micro ATX |
| RAM Type | DDR4 |
