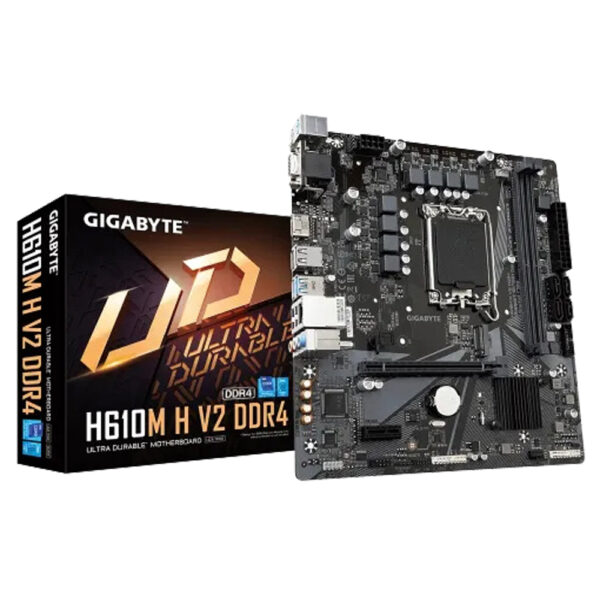

GIGABYTE H610M H V2 DDR4 13th Gen and 12th Gen Micro ATX Motherboard
| Supported CPU | LGA1700 socket: Support for 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel H610 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| M.2 Socket | 1 x M.2 Socket 3 connector 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU. |
| Memory Type | DDR4 |
| Slots | 2 x DDR4 DIMM sockets |
| Supported Memory | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | Up to 64 GB (32 GB single DIMM capacity) of system memory |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports |
| HDMI | 1 x HDMI port |
| D-Sub (s) | 1 x D-Sub port, |
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Special Features | Support for APP Center * * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Manufacturing Warranty | 3 years warranty |
What is the GIGABYTE H610M H V2 DDR4 13th Gen and 12th Gen Micro ATX Motherboard Price in Bangladesh ?
The GIGABYTE H610M H V2 DDR4 13th Gen and 12th Gen Micro ATX Motherboard Price in BD is 0 ৳ in Today’s 21st December 2024 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.
GIGABYTE H610M H V2 DDR4 13th Gen and 12th Gen Micro ATX Motherboard Review in BD
| Product Price |
0 |
| Stock Status | In Stock |
| Specification | Model: GIGABYTE H610M H V2 DDR4 13th Gen and 12th Gen Micro ATX Motherboard
Supported CPU: LGA1700, Support for 13th and 12th Generation Intel Core Supported Memory: 2 x DIMM, Max. 32GB, DDR4 Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz |
| Total Reviews | Based On 0 Reviews. |
| Availability | In Stock |
|---|---|
| Processor Type | |
| Brand | |
| CPU Socket | LGA 1700 |
| From Factor | Micro ATX |
| RAM Type | DDR4 |
| Special Feature | EasyTune |
