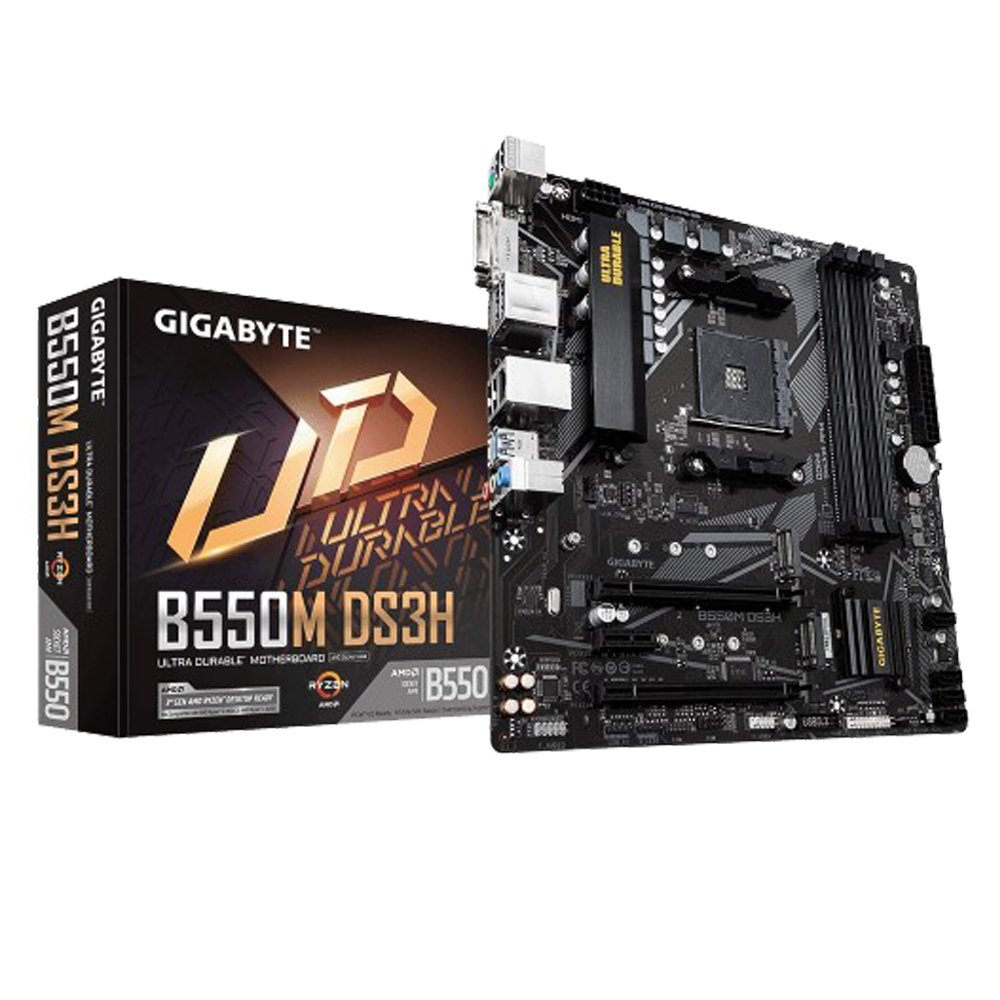

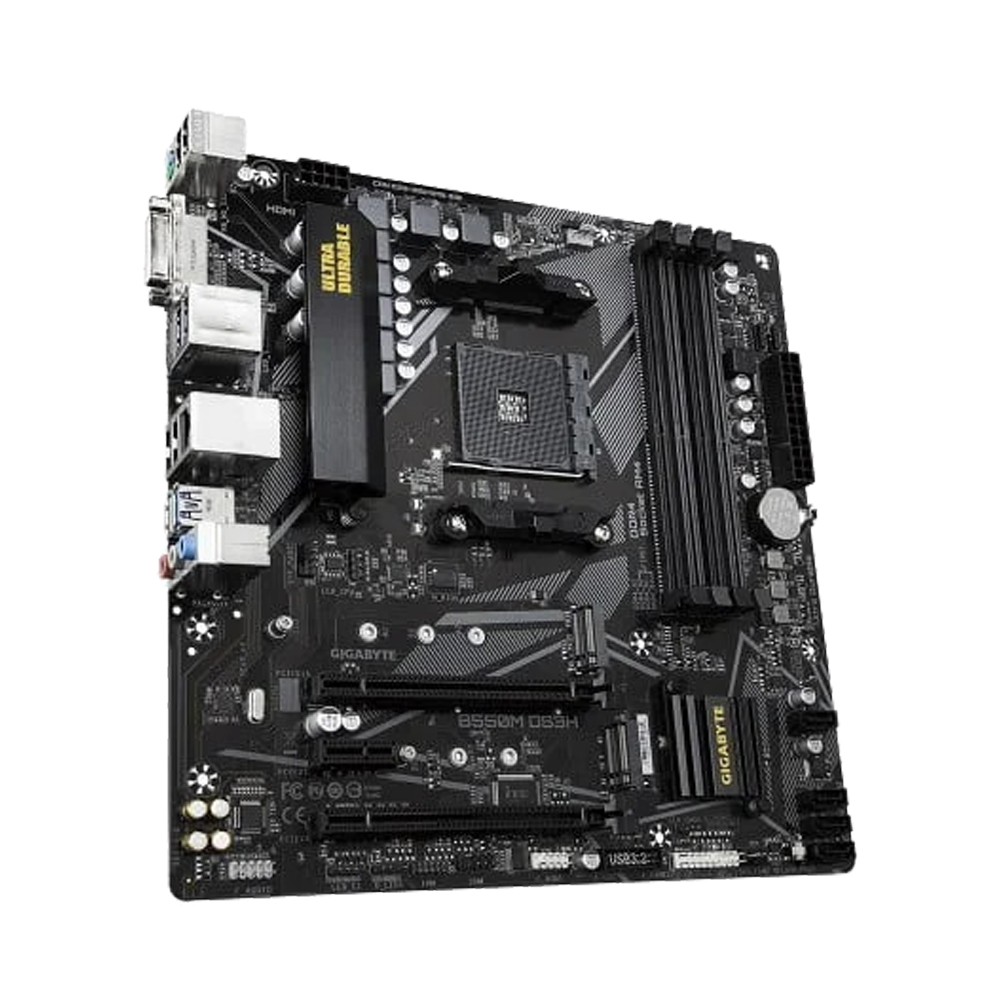

Gigabyte B550M DS3H AM4 AMD Micro ATX Motherboard
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B550 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| PCI | 1‎ x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset: Supporting PCIe 3.0 x1 mode |
| M.2 Socket | 1‎ x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs |
| Memory Type | Dual Channel DDR4 Memory Technology |
| Slots | 4 x DDR4 DIMM sockets |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 128 GB |
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Supported Storage | 1‎ x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated into the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) |
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Manufacturing Warranty | 3 years warranty |
What is the Gigabyte B550M DS3H AM4 AMD Micro ATX Motherboard Price in Bangladesh ?
The Gigabyte B550M DS3H AM4 AMD Micro ATX Motherboard Price in BD is 0 ৳ in Today’s 4th February 2025 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.
Gigabyte B550M DS3H AM4 AMD Micro ATX Motherboard Review in BD
| Product Price |
0 |
| Stock Status | Out of Stock |
| Specification | Model: Gigabyte B550M DS3H AM4 AMD Micro ATX Motherboard
Supported CPU: 5000/4000G Series & 3rd Generation Processors Supported Memory: 4x DIMM, Max. 128GB, DDR4 Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz |
| Total Reviews | Based On 0 Reviews. |
| Availability | In Stock |
|---|---|
| Processor Type | |
| Brand | |
| CPU Socket | AM4 |
| From Factor | Micro ATX |
| RAM Type | DDR4 |
| Special Feature | EasyTune, M.2 |
