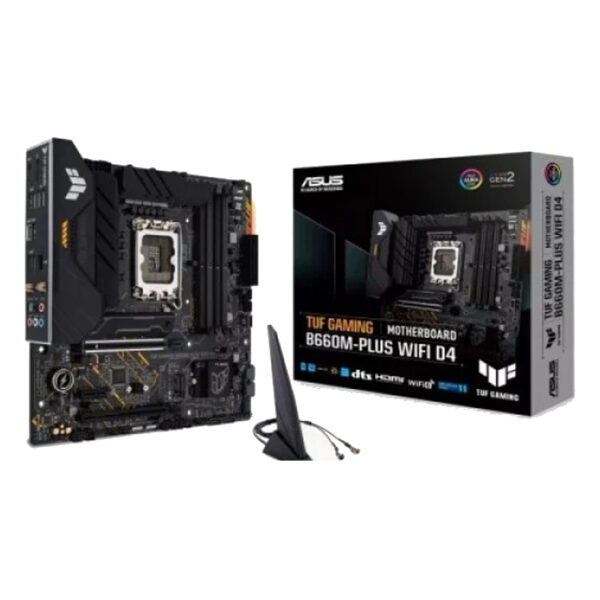

ASUS TUF GAMING B660M-PLUS WIFI INTEL MOTHERBOARD
| Brand | Asus |
| Model | Asus TUF GAMING B660 PLUS WIFI |
| Chipset Brand | Intel |
| Chipset | Intel B660 |
| Sockets Supported | LGA1700 |
| Built-in Processor | No |
| Supported CPU | Intel Core, Pentium, Gold and Celeron Processors |
| Generation | 12th |
| Memory Type | DDR5 |
| Memory MHz | 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Slot (Additional Info) | 4 x DIMM |
| Memory Max. | 192GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Integrated PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Graphics Chipset | Integrated with Processor |
| Multi-GPU Support | No |
| PCI Express Slot | 1 x PCIe 4.0/3.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot |
| Audio Chipset. | Realtek ALC897 |
| Audio Channel | 7.1 |
| LAN Chipset | 1 x Realtek 2.5Gb Ethernet port |
| LAN Speed (Mbps) | 10/100/1000/2500 Mb/s |
| WiFi | Yes |
| WiFi Technology | Not Applicable |
| Bluetooth | Yes |
| USB Port | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| IDE Port | No |
| SATA Port | 4 x SATA |
| Thunderbolt | No |
| TPM Port | No |
| COM Port | Yes |
| DirectX Support | No |
| Fire Wire | No |
| CrossFire Support | No |
| Sli Support | No |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | RGB |
| RGB Sync | Aura Sync |
| RGB Connector | 1 x AURA RGB header |
| Power Consumption | 65W |
| Form Factor | Micro-ATX |
| BIOS Type | 128 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 11 64-bit, Windows10 64-bit |
| Compatible Products | LGA1700 Socket 12th Intel Processor |
| Feature | ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – VRM heatsink design – M.2 heatsinks ASUS EZ DIY – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers |
| Others | Back Panel I/O Ports: 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port, Manageability: WOL by PME, PXE |
| Warranty | 3 Year |
What is the ASUS TUF GAMING B660M-PLUS WIFI INTEL MOTHERBOARD Price in Bangladesh ?
The ASUS TUF GAMING B660M-PLUS WIFI INTEL MOTHERBOARD Price in BD is 0 ৳ in Today’s 21st December 2024 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.
ASUS TUF GAMING B660M-PLUS WIFI INTEL MOTHERBOARD Review in BD
| Product Price | 0 |
| Stock Status | Out of Stock |
| Specification | Model: ASUS TUF GAMING B660M-PLUS WIFI INTEL MOTHERBOARD
Supported CPU: Intel Socket LGA1700 for 12th Gen Intel Core Supported Memory: 4 x DIMM, Max. 192GB, DDR5 Supports max. 4K@60Hz as specified in Display Port 1.4 |
| Total Reviews | Based On 0 Reviews. |
| Brand | |
|---|---|
| CPU Socket | LGA 1700 |
| Generation | |
| Memory Type | |
| Processor Type | |
| HDMI Port | |
| Display Port | |
| VGA Port | |
| DVI Port | |
| Memory Max | 192 GB |
