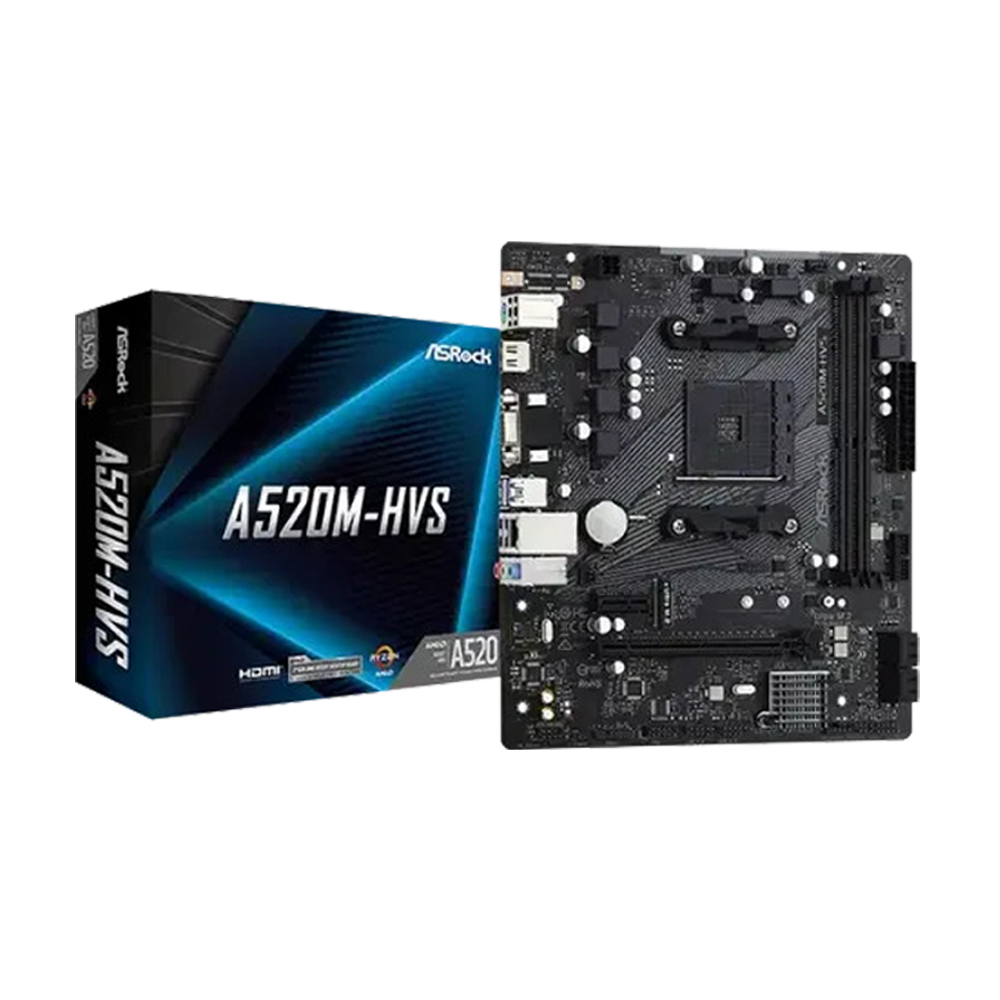

ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
| Supported CPU | Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors 6 Power Phase design |
| Chipset | AMD A520 |
| BIOS | – 128Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) Supports Surge Protection |
| PCI | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* 1 x PCI Express 3.0 x1 Slot |
| Memory Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | Dual Channel DDR4 Memory Technology AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots |
| Maximum Memory | 64 GB |
| Graphics | – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Dual graphics output: support D-Sub and HDMI ports by independent display controllers – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) – Supports HDR (High Dynamic Range) with HDMI 2.1 – Supports HDCP 2.3 with HDMI 2.1 Port – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port – Supports Microsoft PlayReady |
| HDMI | 1 x HDMI |
| D-Sub (s) | 1 x D-Sub Port |
| LAN Port (s) | PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | CPU: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: 4 x SATA3 6.0 Gb/s Connectors |
| Internal I/O Ports | 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| Special Features | ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Manufacturing Warranty | 3 years warranty |
What is the ASRock A520M-HVS AMD AM4 Micro ATX Motherboard Price in Bangladesh ?
The ASRock A520M-HVS AMD AM4 Micro ATX Motherboard Price in BD is 0 ৳ in Today’s 21st November 2024 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard Review in BD
| Product Price |
0 |
| Stock Status | In Stock |
| Specification | Model: ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
Supported CPU: AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Supported Memory: 2x DIMM, Max. 64GB, DDR4 Graphics support: Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz |
| Total Reviews | Based On 0 Reviews. |
| Availability | In Stock |
|---|---|
| Processor Type | |
| Brand | |
| CPU Socket | AM4 |
| From Factor | Micro ATX |
| RAM Type | DDR4 |
| Special Feature | M.2 |
